Prerequisite:
LAN (Private subnet) Networks cannot overlap between each site

Scenario 1 : Setup site to site VPN between Nebula devices (eg: NSG100) under the same organization

Configure Site to Site IPSec VPN on NSG100-A in Test_Hsinchu

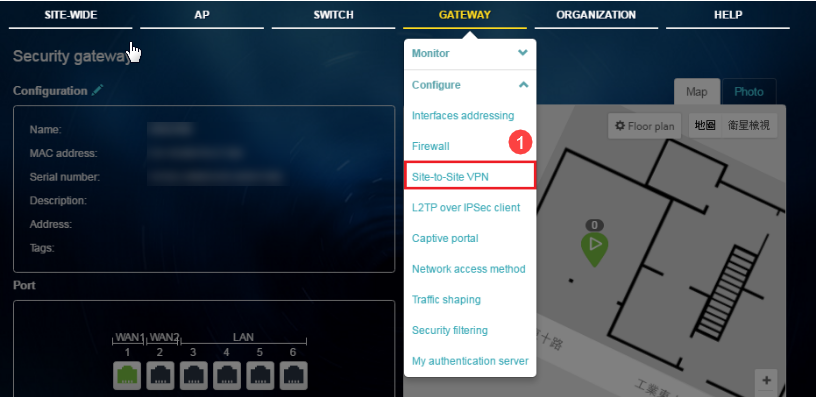

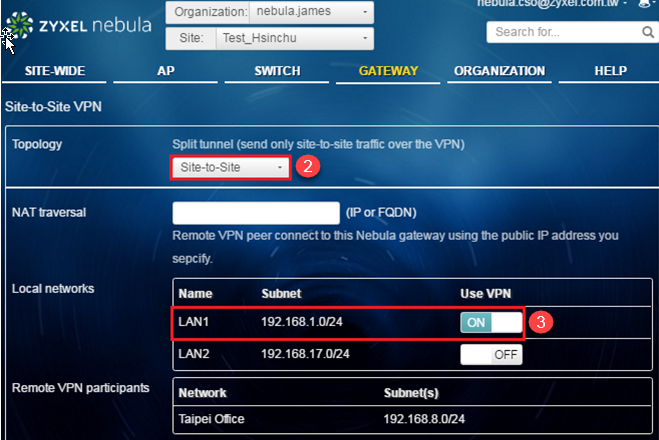

1. Gateway > Configure > Site-to-Site VPN

2. Gateway > Configure > Site-to-Site VPN > Topology > Select Site-to-Site VPN
3. Gateway > Configure > Site-to-Site VPN > Local networks > Toggle on LAN1 and save configuration

Configure Site to Site IPSec VPN on NSG100-B in Taipei Office
4. Gateway > Configure > Site-to-Site VPN

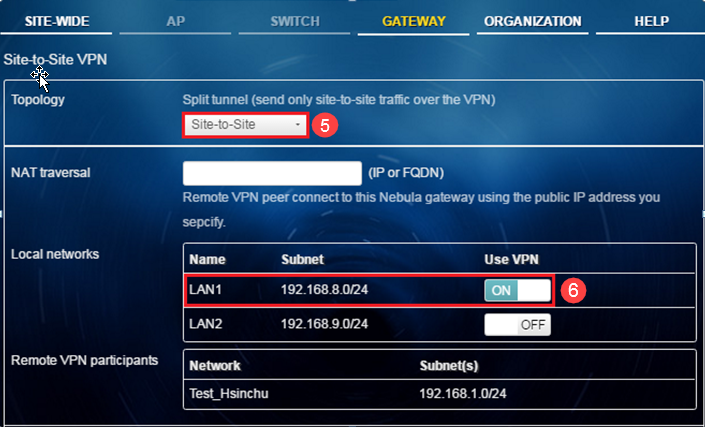

5. Gateway > Configure > Site-to-Site VPN > Topology > Select Site-to-Site VPN
6. Gateway > Configure > Site-to-Site VPN > Local networks > Toggle on LAN1 and save configuration

7. Result of VPN IPsec Connection between Nebula Devices (eg: NSG100) under same organization
  • VPN Site to Site Connect will take 5 minutes to take effect after correct configuration

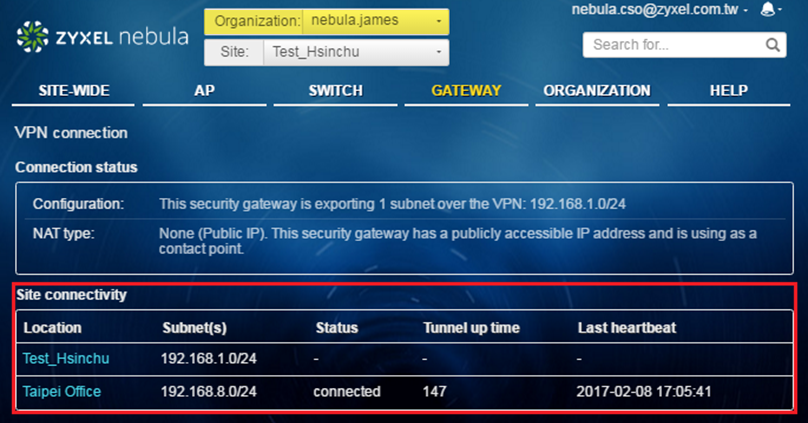

  • Gateway > Monitor > VPN connection in Test_Hsinchu Site

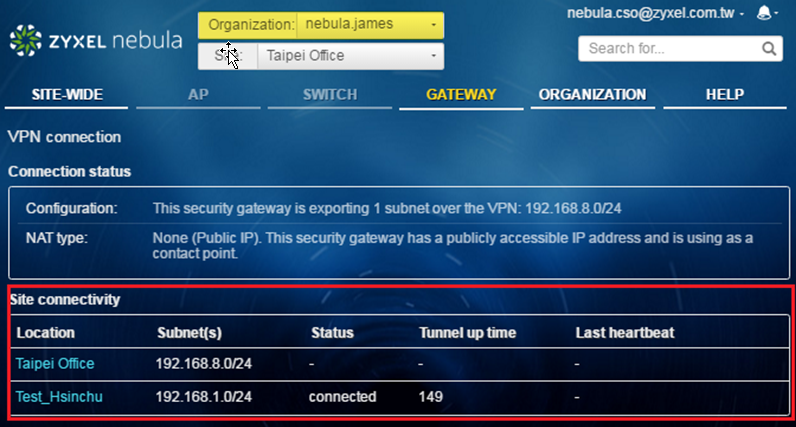

  • Gateway > Monitor > VPN connection Taipei Office Site

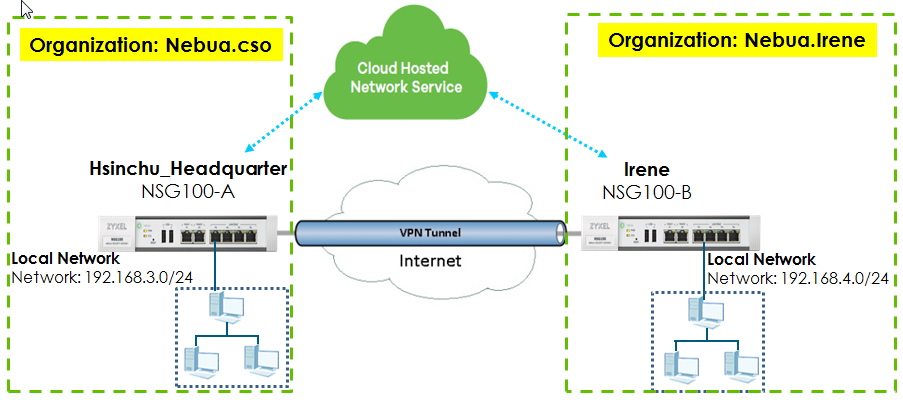

Scenario 2 : Setup site to site VPN between Nebula devices (eg: NSG100) under the different organizations

Configure Site to Site IPSec VPN on NSG100-A in Hsinchu_Headquarter Site

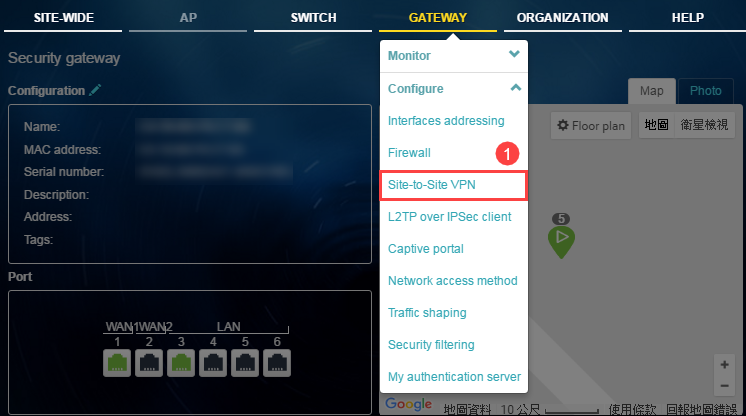

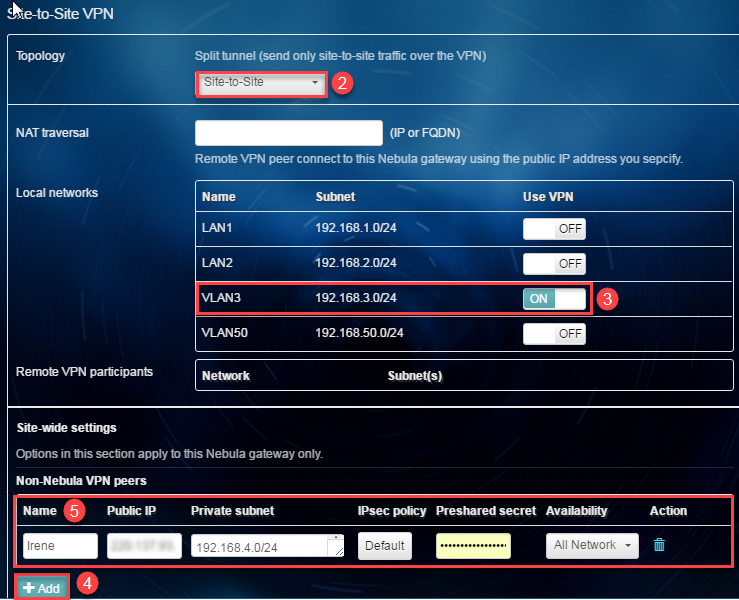

1. Gateway > Configure > Site-to-Site VPN

2. Gateway > Configure > Site-to-Site VPN > Topology > Select Site-to-Site VPN
3. Gateway > Configure > Site-to-Site VPN > Local networks > Toggle on subnet that you created (eg: VLAN3)
4. Gateway > Configure > Site-to-Site VPN >Non-Nebula VPN Peers > +Add
5. Enter information with name, public IP, private subnet (LAN) and Preshared secret to NSG100-B that you would like to create the VPN connection , and save configuration


Configure Site to Site IPSec VPN on NSG100-B in Irene Site

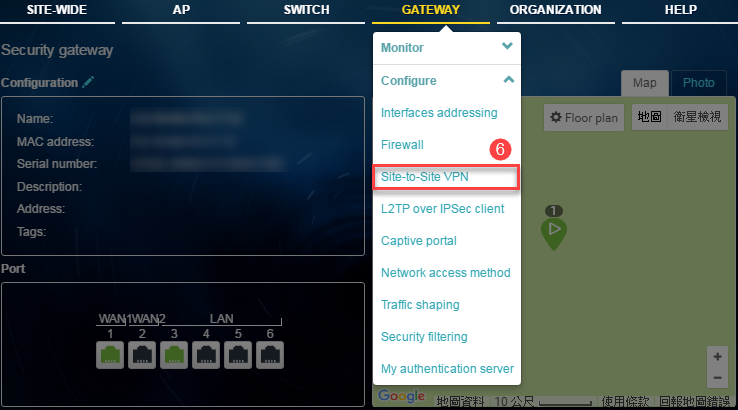

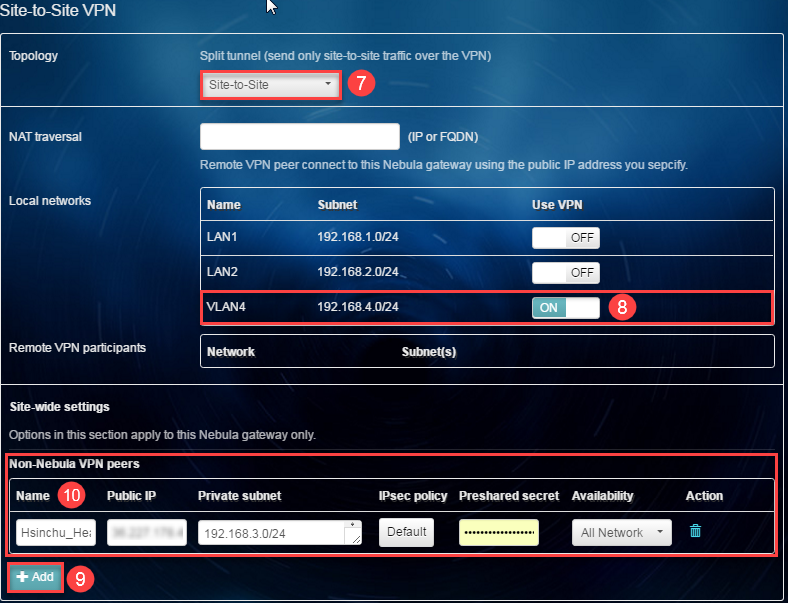

6.Go to Gateway > Configure > Site-to-Site VPN

7. Gateway > Configure > Site-to-Site VPN > Topology > Select Site-to-Site VPN
8. Gateway > Configure > Site-to-Site VPN > Local networks > Toggle on subnet that you created (eg: VLAN4)
9. Gateway > Configure > Site-to-Site VPN >Non-Nebula VPN Peers > +Add
10. Enter information with name, public IP, private subnet (LAN) and Preshared secret to NSG100-A that you would like to create the VPN connection, and save configuration


11. Result of VPN IPsec Connection between Nebula Devices (eg: NSG100) under different organizations
  • VPN Site to Site Connect will take 5 minutes to take effect after correct configuration

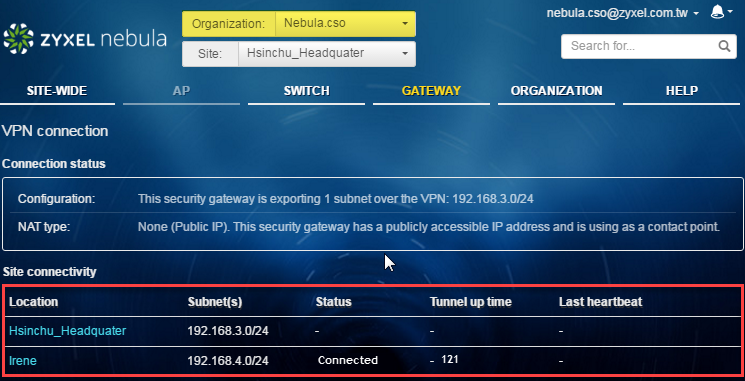

  • Gateway > Monitor > VPN connection in Hsinchu_Headquarter Site
  • Gateway > Monitor > VPN connection in Irene Site
